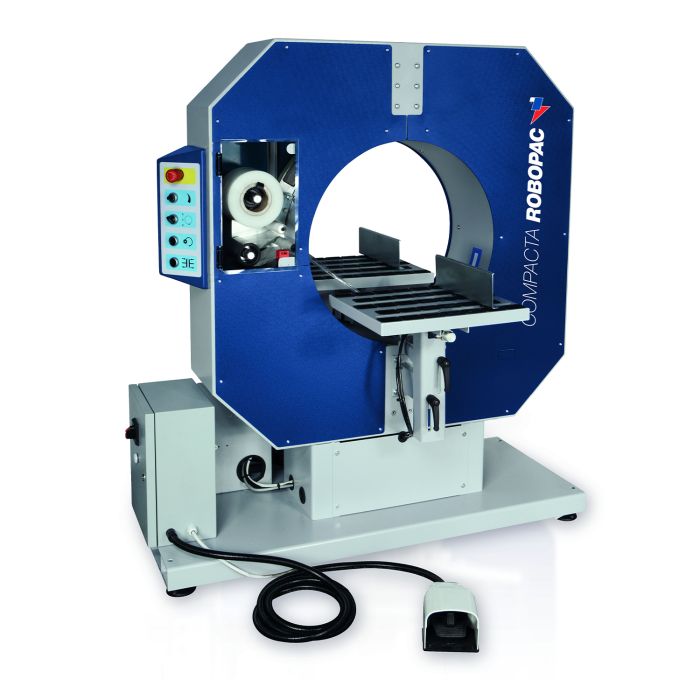

Horizontal Wrapper Compacta 6 by ROBOPAC
The Compacta line from Robopac offers the best of horizontal stretch-film wrapping technology. With its different rotating ring diameters, the Compacta line of wrapping machines covers a wide variety of product categories as well as diverse shapes and dimensions.
The Compacta 6 is versatile and easy to use, offering unparalleled production automation. Constructed from high-quality materials, this machine is top-rated in its class.
* Preparation and installation fees not included.
* For more options, please contact your Account Manager.
* Photo used for illustrative purposes only.
The Compacta horizontal stretch film wrappers from Robopac cover a wide range of product categories with varying shapes and sizes thanks to the different diameters of the rotating ring. The Compacta 6 model is versatile and easy to use. It offers top-quality automation features. Built with high-quality materials, this packaging equipment is among the best in its category.
-
Rotation speed: 120 rpm for the Compacta 6
-
Start and stop by foot pedal: for safe use and to free the operator's hands
-
Complete automation of the packaging cycle: thanks to the clamping and cutting unit equipped with two highly reliable rods
-
Film insertion and change made easy: the film holder group is equipped with a direct breaking roller
-
Roller locking and unlocking system
-
Continuous tensioning system
-
Compact: ideal for more confined spaces
Available models :
Compacta 4: 125 mm roll and rotation speed of 150 rpm.
Compacta 9: 125 mm and 250 mm rolls and rotation speed of 75 and 60 rpm.
Compacta 12: 125 mm and 250 mm rolls and rotation speed of 58 rpm.
* Preparation and installation fees not included.
* Photos used for illustrative purposes only.
|
Power supply voltage |
110V / 1 Φ / 60 Hz |
|
Max. rotation speed |
120 RPM |
|
Max. rotation speed |
1010 mm (40”) |
|
Machine width |
1250 mm (49”) |
|
Machine height |
1340 mm (53”) |
